Casa /Prodotti/Cavo ottico della fibra di vetro/High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks

High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks

1
MOQ
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Diametro del nucleo in fibra: 200μm, 300μm, 400μm, 600μm, 800μm
Materiale del nucleo in fibra: Silice fusa ad elevata purezza (Low-OH)
Tipo di fibra: Fibra step-index di serie; Fibra ad indice graduato su richiesta
Apertura numerica: 0,22 di serie, altri a richiesta
Lunghezza d'onda operativa: 400-2400 nm
Diametro del tubo di protezione: 8 mm
Lunghezza del cavo: 3, 5, 10, 20 m (personalizzabile)
Diametro del rivestimento: 500μm, 750μm
Diametro del rivestimento: 780μm, 1100μm
Materiale core: Quarzo puro (basso OH)
Materiale del rivestimento: Materiale al quarzo drogato
Due rivestimenti numerici: NA 0,37 O NA 0,46
Efficienza di trasmissione: > 90%
Potere massimo del laser: 600 W.
Dimensione del pacchetto: 25X20X1cm
Evidenziare:

Active Cooling High Power Laser Fiber Cable

,

D80 Connectors High Power Laser Fiber Cable

,

4G Wi-Fi 3G Networks Compatible High Power Laser Fiber Cable
Informazioni di base
Luogo di origine: Guangdong, Cina
Marca: Hicorpwell
Numero di modello: D80
Termini di pagamento e spedizione
Descrizione di prodotto

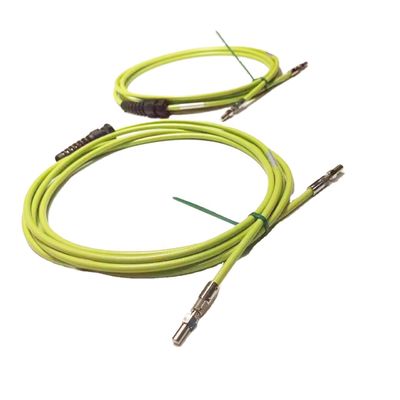

High Power Laser Fiber Cable with Active Cooling D80
Precision-engineered fiber optic cable with standard connectors compatible with 4G Wi-Fi and 3G networks, designed for high-power laser transmission up to 600W.
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 0 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 1

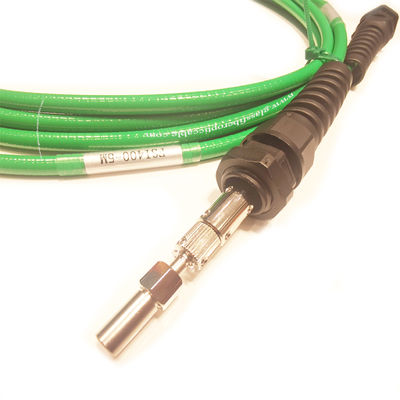

D80 Fiber Cable Features
The Hicorpwell D80 fiber features precision ground end faces, large core diameter, air gap technology, and sapphire D80 connectors. Capable of stable transmission exceeding 90% efficiency for high-power laser applications up to 600W.
Product model(µm) ST200E ST300E ST400E ST600F
Core diameter(µm) 200 300 400 600
Cladding diameter(µm) 500 500 500 750
Coating diameter 780 780 780 1100
Core material Pure quartz (Low-OH)
Cladding material Doped quartz material
Numerical aperture(NA) 0.22
Two cladding numerical(NA) NA 0.37 OR NA 0.46
Operating wavelength(nm) 400-2400
Length(m) 3, 5, 10 (default length is 5 meters, customizable)
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 2 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 3 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 4
Technical Specifications
Specification Details
Fiber Core Diameter (μm) 200, 300, 400, 600, 800
Fiber Core Material High purity fused silica (Low-OH)
Fiber Type Step-index fiber as standard; Graded-index fiber on request
Numerical Aperture (NA) 0.22 as standard, others on request
Operating Wavelength (nm) 400-2400
Protection Tube Diameter (mm) 8
Cable Lengths (m) 3, 5, 10, 20, etc. (customizable)
Key Features
  • Sapphire and Air Gap Protection for enhanced durability
  • Precisely Polished D80 Fiber Connectors for optimal transmission
  • Step-index Fiber Optimized for VIS-NIR wavelengths
  • 0.22NA as standard with other configurations available
  • No-glue technology for improved heat dissipation and service life
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 5 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 6
Applications
  • High power laser transmission systems
  • Laser welding and cutting operations
  • Precision laser marking
  • Atmospheric spectrum measurement
  • Industrial laser cleaning applications
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are factory verified by TUV.
Q2: What is your delivery time?
A: Generally, samples: 3-5 working days. Formal orders: 7-10 working days.
Q3: Do you provide OEM service?
A: Yes, we can print your logo or label on the products or packaging.
Q4: Can you provide free samples?
A: Some low-value samples can be free, but shipping costs must be covered.
Q5: How do you guarantee quality?
A: All products undergo 100% testing before shipment under our quality management system.
Q6: What are your payment terms?
A: We accept T/T, Western Union, MoneyGram, PayPal. Samples: 100% payment. Orders: 30% deposit, 70% balance before shipment.
Company Profile
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 7 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 8
Our Hicorpwell Team
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 9 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 10
